1 channel
Transmission Distance HDCVI
720P: max.400m(1312.34ft)
1080P: max.250m(820.21ft)
4MP: max.200m(656.17ft)
Category Type UTP CAT 5E/6
Video Transmission Properties And Port
Coaxial Video Connector BNC-M

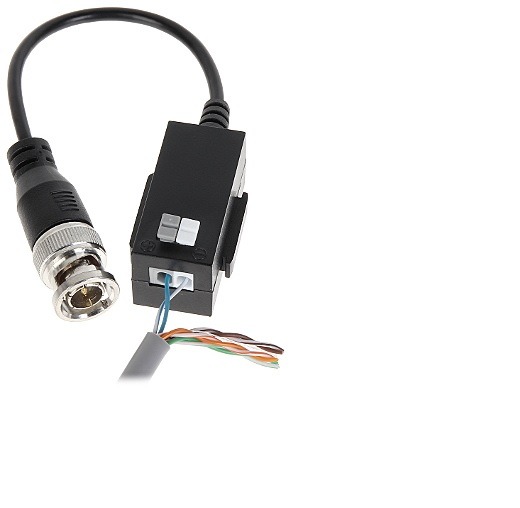

Twisted-pair Video Connector Push-terminal
Compatible Format HDCVI/AHD/TVI/CVBS
Resolution 720P/1080P/4MP
Anti-interference 60db
Protection
ESD
1a contact discharge electricity level 3
1b air discharge electricity level 3
Per: IEC61000-4-2
Coaxial Cable Connector 2KV(common-code) Per: IEC1000-4-5
UTP Cable Connector 2KV(different-code), 4KV(common-code), Per: IEC1000-4-5
Impedance
BNC Male 75 ohms
UTP Cable 100 ohms
Physical Properties
Dimension(L*W*H) 173mm*21mm*20mm
Shell ABS
Color Black
N.W. 25g
Stability
MTBF 10000h
Environmental
Operating Temperature -10¿55¿(14¿131¿)
Storage Temperature -20¿70¿(-4¿158¿)
Humidity 095%(non-condensing)
